Phrozen Sonic CS+

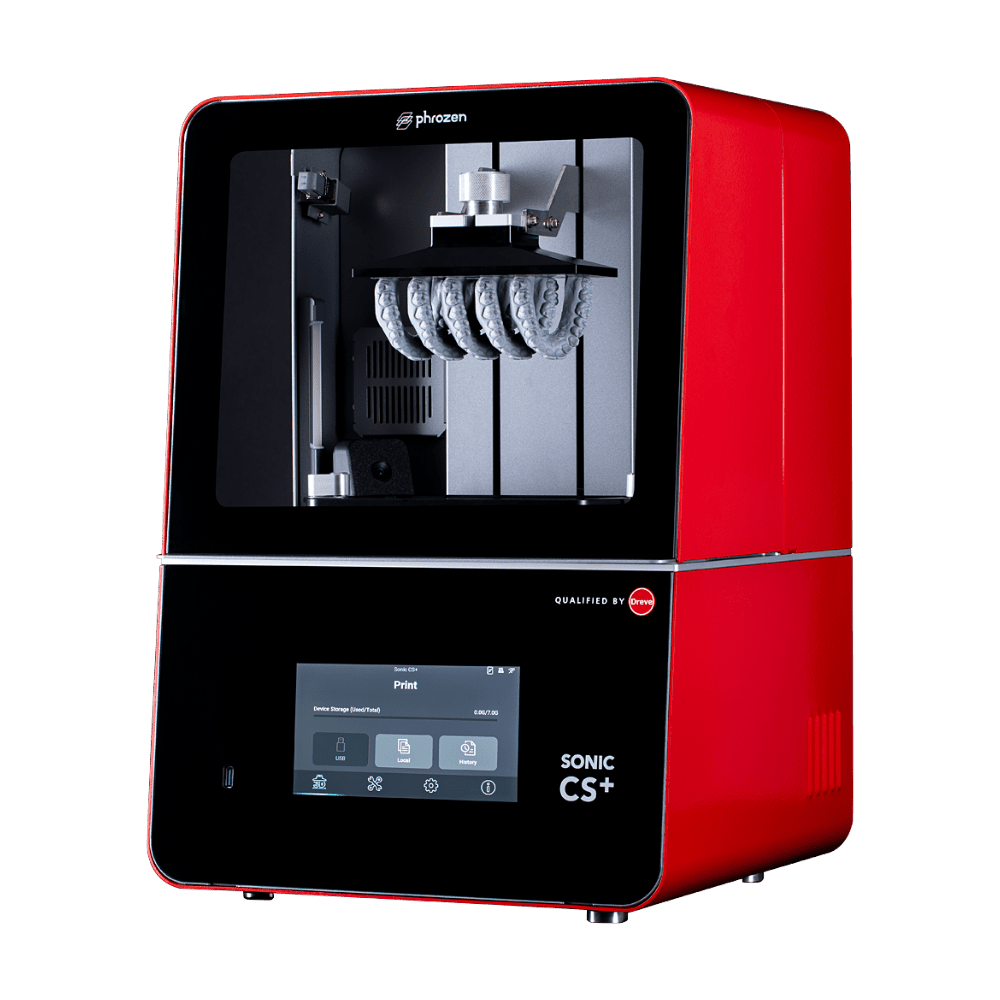

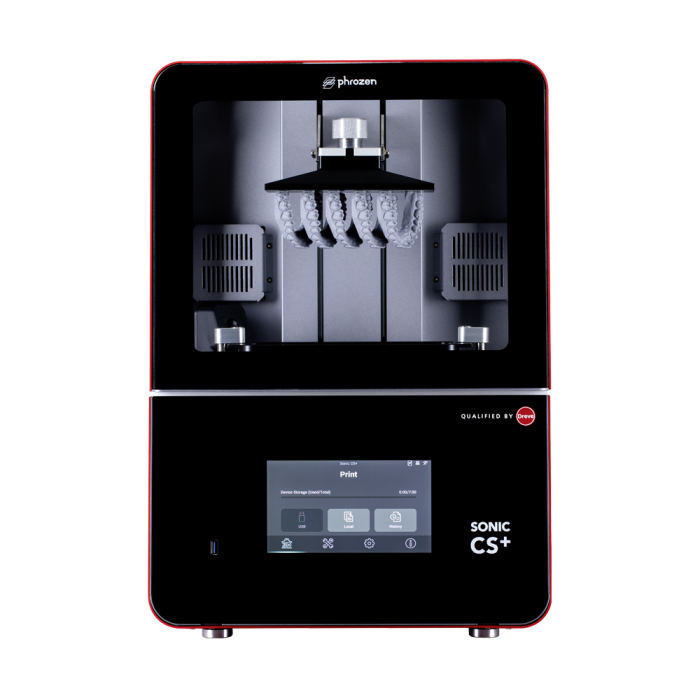

Phrozen Sonic CS+ 3D Printer

Phrozen Sonic CS+ – Qualified by Dreve Compact LCD desktop printer with 22 μm resolution and an innovative 385 nm LED light source, delivering high light intensity for fast build times.
The high-quality full-metal housing and improved vat and platform handling make the Phrozen Sonic CS+ a user-friendly 3D printer for all dental applications.

Highlights

• High light intensity for short building times
• Monitoring during printing via webcam
• Web-based control and monitoring
• Compatible with the entire FotoDent® product range
• Easy replacement of wear parts
• Maintenance, support, and repair at Dreve America

Contents

• CS+ Printer
• Standard and Mini-Vats
• USB stick
• Spatula
• Funnel
• Slicing software Dreve ElementS

Technical data

• Build volume standard: 74mm x 168mm x 185mm
• Build volume mini: 75mm x 75mm x 185mm
• Wavelength: 385nm
• Light intensity: 5mW/cm²
• Resolution: 22 microns
• Layer thickness: 0.01mm – 0.30mm
